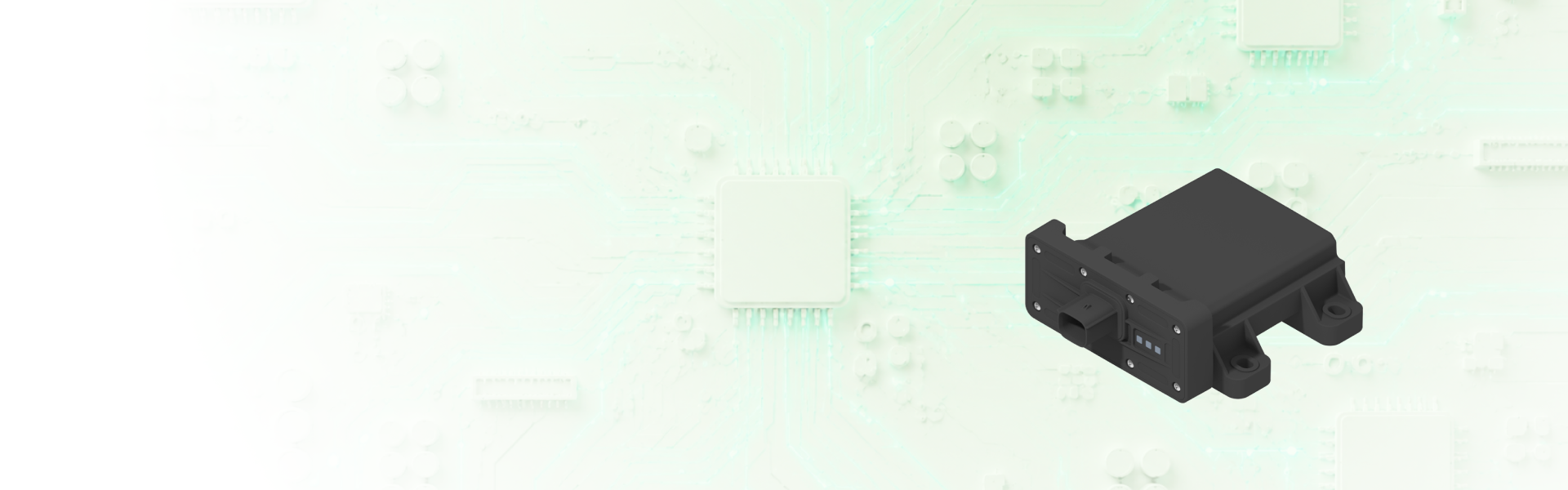

AT-TCU-5-B-100

Automotive telematics control unit built specifically for cost efficiency. Helps OEMs and regulated commercial transport fleets achieve compliance without overspending. This field-proven fleet telematics device delivers live GPS tracking and secure Cat1 connectivity, allowing operators to instantly transform standard vehicles into intelligent, cloud-connected assets.

Request a Demo

Connecting Fleet Journey

The AT-TCU-5-B-100 acts as a compact, high-efficiency automotive telematics control unit installed directly into your assets. By capturing location dynamics and critical hardware signals, this fleet telematics device streams secure edge data to the cloud.

Live GPS Tracking & Positioning

Utilise a dedicated track-and-trace framework featuring multi-constellation GNSS tracking to pinpoint assets exactly, improving total route transparency across logistics networks.

Seamless In-Vehicle Network Integration

Interface directly with existing vehicular electronics using a built-in telematic control module structure that supports standard CAN 2.0 and CAN UDS data paths.

Secure Cat1 Cloud Connectivity

Transmit critical fleet telematics solutions metrics over high-efficiency LTE Cat 1 pipelines using TCP/MQTT protocols guarded by TLS 1.2 encryption and external hardware-level security.

Remote Lifecycle Automation

Manage distributed assets with zero field overhead using secure over-the-air firmware upgrades via HTTPS and direct CAN communication loops.

Empowering Every Detail

3-Constellation GNSS

GPS · BEIDOU · QZSS

CAN 2.0 + CAN UDS

Native vehicle network protocols

Optimised Patch Antenna

Integrated L1 $25\times25$ patch antenna

LTE Cat 1 Connectivity

TCP · MQTT · TLS 1.2

Automotive Grade MCU

FreeRTOS and Bare Metal architecture

IP65 waterproof

6-pin automotive connector

Empowering Every Engineer

Operating Voltage

8 – 16V

Nominal Voltage

12V

Device Sleeping Current

<5mA

Device Normal Current

<100mA

Operating Temperature

−40°C to +85°C

Compliance Standard

AIS 004 Part 3 Compliant

Product IP Rating

IP65

NAD Grade/ OS

Industrial / FreeRTOS

Connector Type

6-pin Automotive Connector

Internal Backup Battery

Li-ION 850mAh (min. 4 hours runtime)

Watchdog IC

MCU Grade/ OS

Automotive Grade / Bare Metal

Constellations

GPS / BEIDOU / QZSS

GNSS Antenna

L1 $25\times25$ Patch Antenna

Multi-Constellation Engine

Dedicated GNSS tracking architecture

Ignition Input

Digital Input (DI)

Digital Output (DO)

PP (1x Low-Side Driver)

Analogue Input (AI)

NA (Customizable)

CAN

CAN 2.0 / CAN UDS

Memory

16 MB NOR Flash

Cellular Network Grade

LTE CAT1

SIM Core Type

Embedded eSIM

Cellular Antenna

Internal Antenna

Network Protocol

TCP / MQTT / HTTPS / FTP

International Deployment

Upgradeable for Africa, the Americas, Middle East, and Asian countries

Encryption Protocol

TLS 1.2

Hardware Security

Internal HSM (External HSM PP options)

Firmware Update

Over-the-Air (HTTPS) · Wired CAN Bus

Empowering Every Application

The AT-TCU-5-B-100 is deployed where price optimisation meets regulated compliance, driving scalable transparency for diverse logistics operations and industrial vehicle networks.

Cost-Optimized Logistics & Commercial Fleets

High-volume cargo operations, intra-state delivery trucks, and distribution vehicles require a robust fleet management system with live GPS tracking. The A4T offers a dependable hardware foundation that logs transit status, minimises vehicle power usage via ultra-low standby tracking, and feeds raw positioning records cleanly to back-end mapping portals.

OEM Standard Factory Fitment

Automotive manufacturers looking for a cost-effective, standard-compliant TCU for automotive production lines. Its small form factor, 6-pin automotive connection, and built-in CAN UDS diagnostics make it an ideal, factory-installed telematics engine for entry-level consumer and commercial automotive lineups.

Empowering Every Possibility

Explore related Accolade products designed to support wider connected mobility, vehicle electronics, power management, and intelligent automotive architectures.

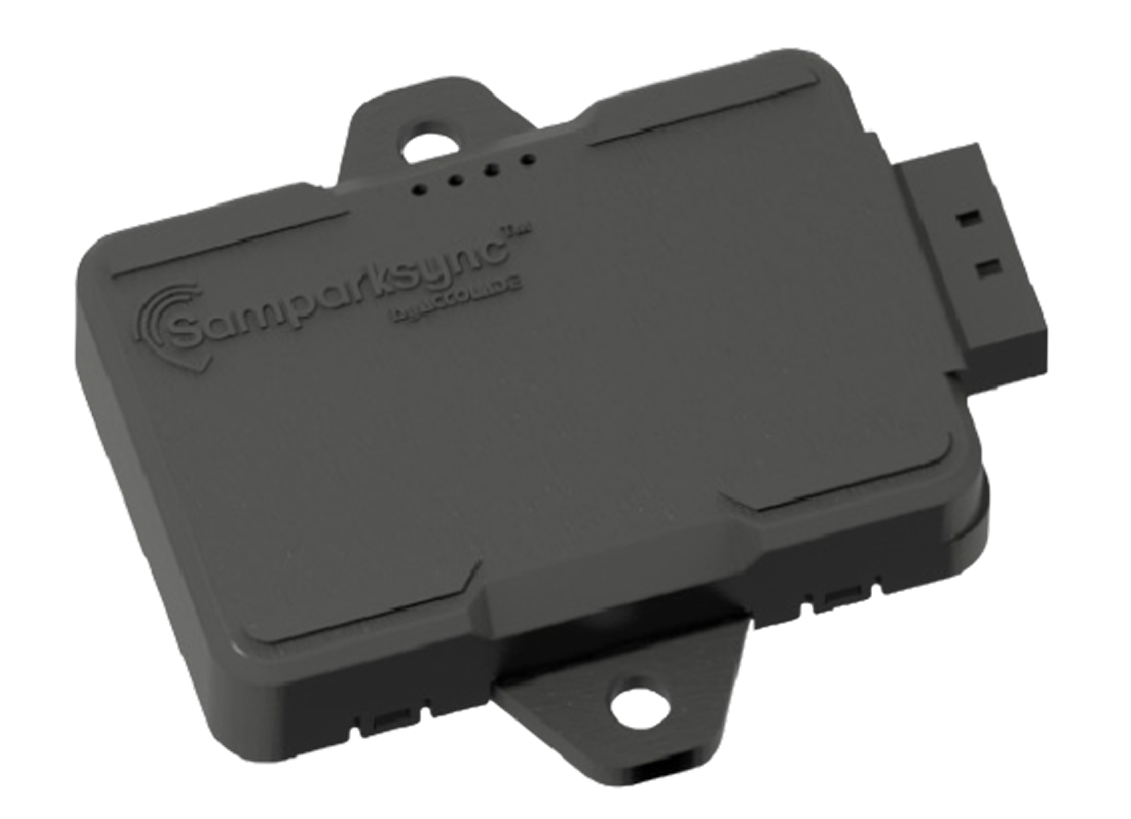

Lakshya (ATL-1000)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.

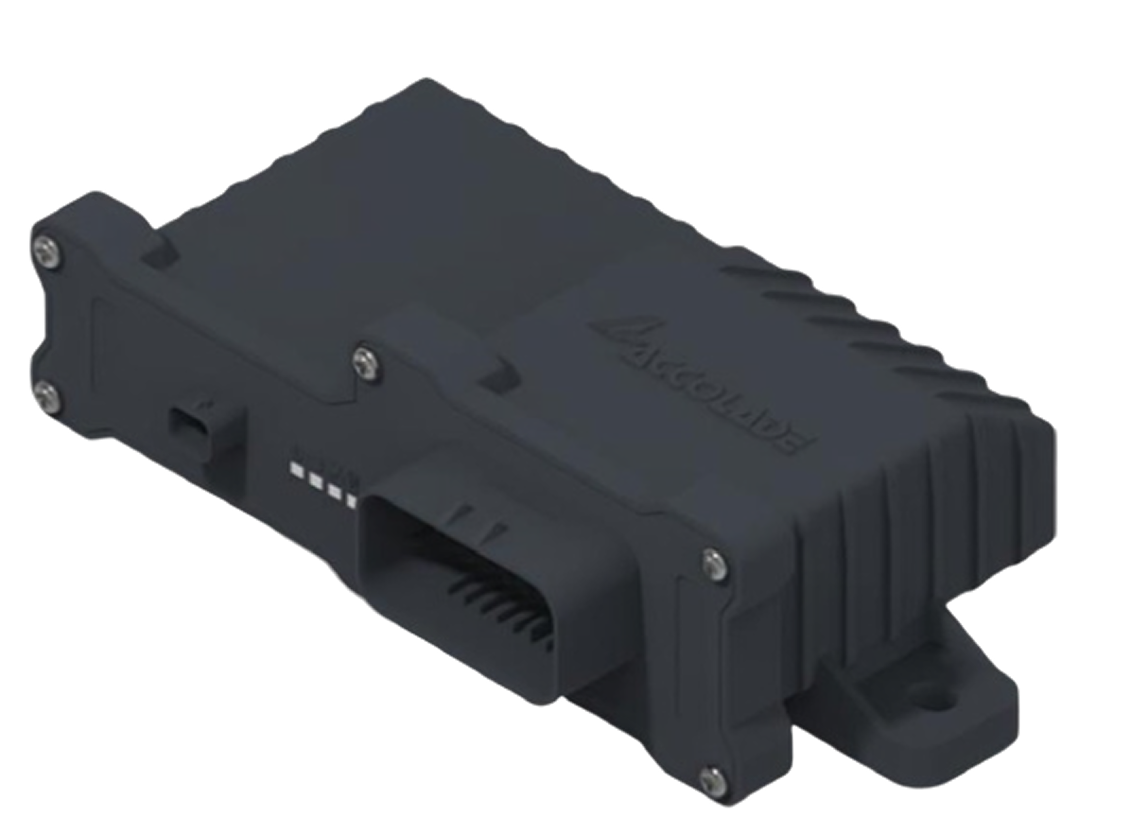

Tarang (ACON-4T-PRO)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.

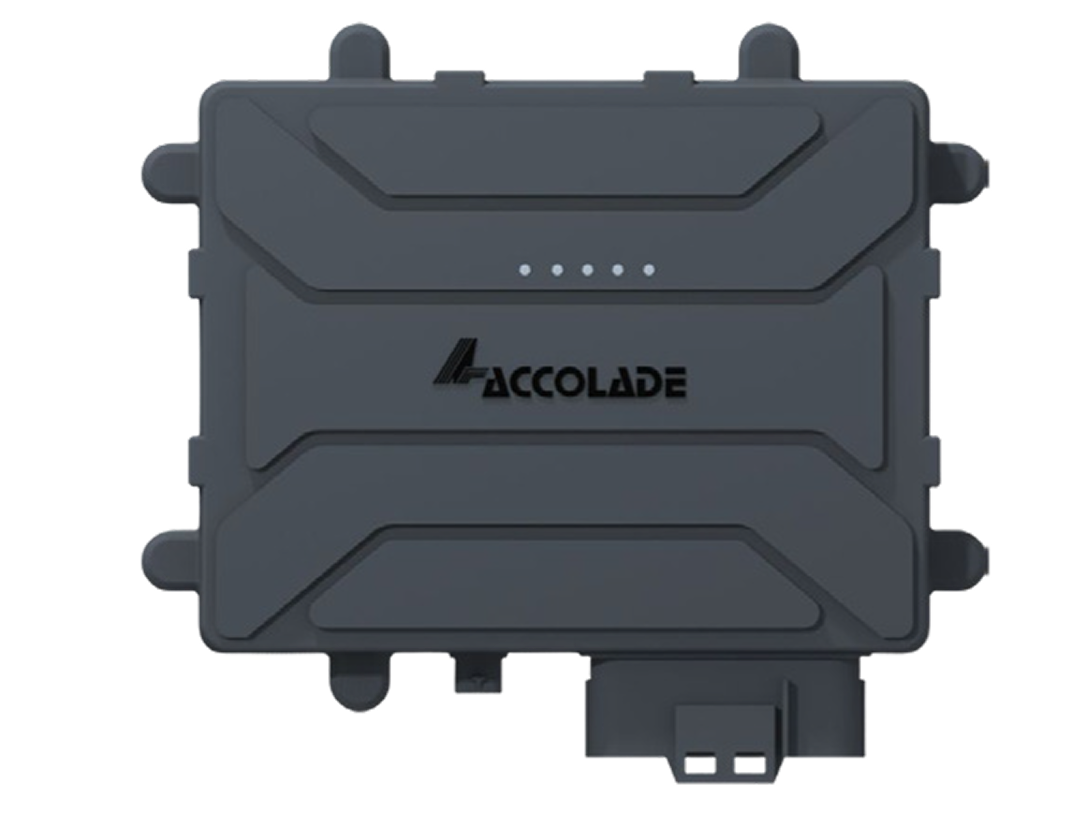

Atlas 4G (ATA-PRO)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.

Empowering Every Next Move

Whether you are building the next generation of connected vehicle systems, evaluating a production-ready supplier, or exploring a new mobility platform, Accolade brings the capability, discipline, and responsiveness to move with you.

Partner With Us Explore Our Expertise

Empowering Every Fleet Operation

AT-TCU-5-A-110 pairs a Linux telematics platform with automotive-grade interfaces and secure connectivity. One unit built for the demands of connected fleet management, OEM integration, and regulatory deployment.

Linux-Based Fleet Intelligence

An industrial-grade Linux NAD with eMMC storage up to 64GB gives ACON-4T PRO the processing depth to handle complex fleet data, richer analytics, and faster firmware evolution than standard TCUs.

Secure by Design

Internal HSM with upgradeable external HSM and TLS 1.2 encryption protects every data transmission. Security is built into the hardware, not layered on after.

Multi-Channel Firmware Updates

Firmware updates over HTTPS, RS232, CAN, and RS485 give fleet teams flexible lifecycle management across the entire deployment, with or without depot access.

Rich Interface Integration

Eight digital inputs, dual CAN 2.0, RS232, RS485, and Dallas 1-Wire support connect the sensors and sub-systems a modern fleet depends on, from fuel monitoring to driver behaviour.

Ready for What Comes Next

CAT4, CAN FD, external HSM, and WB-NTN satellite are all upgradeable. The platform grows with the programme instead of being replaced by it.

Every Detail, Engineered In

Linux-Based Telematics Platform

Industrial Linux NAD · 256MB RAM · 256MB ROM · eMMC 8/32/64GB

AIS-140 + OEM DVP Certified

Dual qualification for regulatory deployment and OEM programme integration

Complete GNSS Coverage

GPS · BEIDOU · Galileo · GLONASS · QZSS · IRNSS · L1+L5 internal antenna

HSM Security

Internal HSM · External HSM upgradeable · TLS 1.2 encryption

Automotive Interfaces

8 DI · 2 CAN 2.0 · RS232 · RS485 · Dallas 1-Wire · CAN UDS

Multi-Channel OTA

HTTPS · RS232 · CAN firmware update flexibility

4G CAT1 + 2G Fallback

CAT4 upgradeable · TCP · MQTT · HTTPS · FTP protocols

Automotive Ethernet

100Base-T1 · WB-NTN satellite upgradeable

Built for Every Engineer’s Journey

Operating Voltage

9–32V

Nominal Voltage

12/24V

Device Sleeping Current

<5mA

Device Normal Current

<100mA

Operating Temperature

−40°C to +85°C

Storage Temperature

−40°C to +85°C (without battery)0°C to +60°C (with Li-Ion battery)

DVP Certification

AIS-140 & OEM DVP

Product IP Rating

IP65

Ignition Input

Digital Input

Analog Input

Digital Output

RS232 Interface

Yes, 1

RS485 Interface

Yes

Dallas

CAN 2.0

CAN FD

Upgradeable

CAN UDS

Yes

Internal Battery Charger

Yes

In-built Battery Backup

850mAh

Tamper S/W

Yes

NV Memory / Data Storage

1G bit (128MB) Upgradeable to 1GB

eMMC

8 / 32 / 64GB

Connector

23-pin Automotive Connector

Mounting Brackets

Yes M6 screw mounting provision

Firmware Update over CAN

Yes

Firmware Update Options

Over the Air — HTTPS, RS232, CAN

BLE

WiFi

IRNSS

Yes

GNSS

GPS · BEIDOU · Galileo · GLONASS · QZSS

GNSS Tolling

As per Amendment 3 Draft

GNSS Antenna

L1 + L5 Internal Antenna

Modem Communication Protocol

TCP · MQTT · HTTPS · FTP Upgradeable to SIBROS

Cloud Protocol

TCP · MQTT

Modem Security

TLS 1.2

2G Fallback

Yes

CAT1

Yes

CAT4

Upgradeable

GSM Network Antenna

Internal Antenna

SIM Card

eSIM / Plastic SIM

International Business

Upgradeable versions available for Africa, America, Middle East, and Asian countries

NAD Grade

Industrial

NAD OS

Linux

NAD ROM

256MB

NAD RAM

256MB

MCU Grade

Industrial

MCU OS

Bare Metal

MCU ROM

512KB

MCU RAM

256KB

Watchdog IC

Yes

Accelerometer + Gyro

Yes

HSM Internal

Yes

HSM External

Upgradeable

eCall

MIC + SPK

V2X

Automotive Ethernet

100Base-T1

WB-NTN

Upgradeable

NB-NTN

Every Standard, Already Met

AT-TCU-5-A-110 is engineered for compliance as a programme requirement, validated through Accolade's in-house engineering and quality processes.

Empowering Every Application

AT-TCU-5-A-110 is deployed across fleet and OEM programmes where Linux architecture, secure connectivity, and rich interface integration are requirements, not extras

Connected Commercial Fleets

Large fleets running multi-state operations that need Linux-based intelligence, driver behaviour data, and secure OTA management across the deployment.

OEM Programme Integration

Commercial vehicle OEMs needing a telematics module with OEM DVP qualification, automotive Ethernet, and deep CAN integration for factory-fit programmes.

Regulatory Deployments

AIS-140 mandated fleets requiring certified, tamper-proof tracking with backup battery continuity and complete GNSS constellation coverage.

Sensor-Rich Applications

Fuel monitoring, cold chain, and specialised cargo deployments that depend on Dallas 1-Wire, analogue inputs, and RS485 sensor integration.
