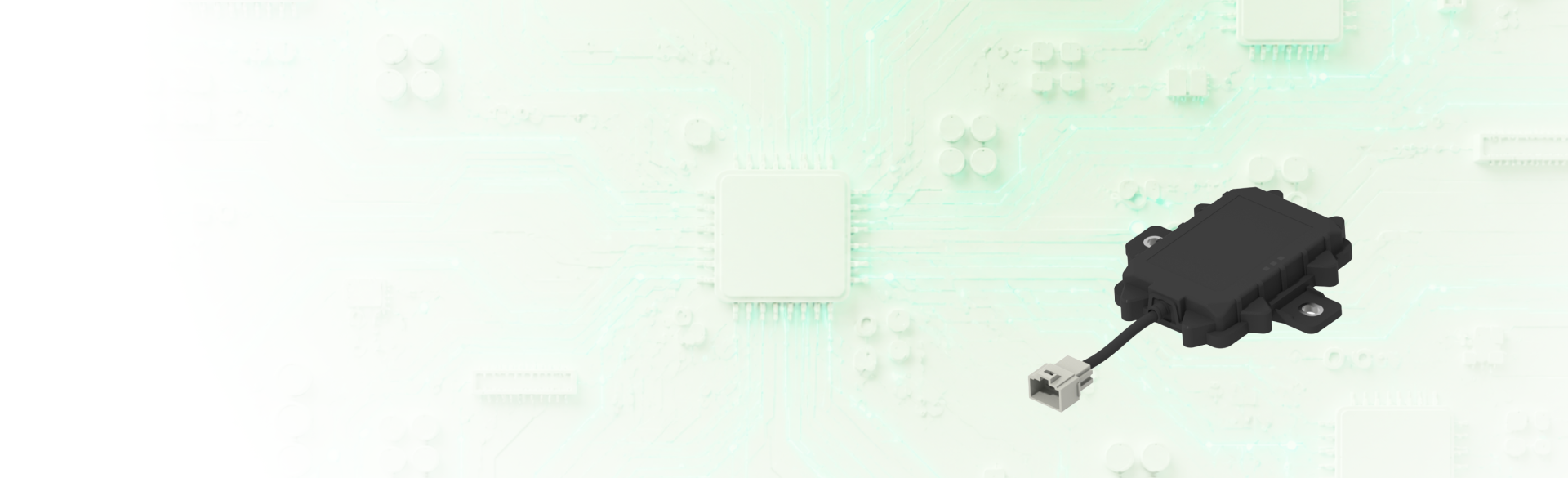

AT-TCU-3-A-100
The telematics control unit, purpose-built for India's EV 3-wheeler ecosystem. OEM DVP-compliant, hardware-secured, and engineered for the duty cycles of daily commercial 3-wheeler operation. Reliable telematics for platforms that run every single day.
Empowering Every 3 Wheeler EV
AT-TCU-3-A-100 turns every EV 3-wheeler into a connected, trackable, and serviceable asset, built specifically for the OEMs and fleet platforms driving India's electric last-mile shift.
OEM-Ready by Design
Designed for the EV 3-wheeler market and compliant with OEM DVP requirements. Validated to the duty cycles and integration standards 3W manufacturers already test against, so it fits the platform without a redesign cycle.
Hardware-Level Security
Modem secured with Transport Layer Security 1.2 and an external Hardware Security Module. Data leaves the vehicle encrypted and authenticated at the hardware layer, not bolted on in software.
OTA-Enabled Lifecycle Management
Firmware updates delivered over the air via HTTPS and CAN. Fleets stay current without a single vehicle coming off the road for a manual flash.
Precise, Reliable Positioning
GNSS support across GPS, BDS, and Galileo via internal L1+L5 antenna, so location data stays accurate through the tight turns and dense traffic of urban 3W routes.
Empowering Every Detail
Cat1 LTE Connectivity
TLS 1.2 · External HSM
1 Gbit base memory
Upgradable up to 4 Gbit
CAN + TCP/MQTT
OTA via HTTPS, CAN
GPS · BDS · Galileo
Internal L1+L5 Antenna
Targeted I/O Interface
2 Digital Inputs, 2 Analogue Inputs, 2 Digital Outputs
IP67 Waterproof
Package-Protected Battery
Empowering Every Engineer
Operating Voltage
8 – 36V
Nominal Voltage
13.5 V
Device Sleeping Current
<1mA
Device Normal Current
<100mA
OEM Compliance
Compliant with OEM DVP Requirements
Product IP Rating
IP65
Form Factor / Integration
EV-Ready Telematics Platform
Connector Type
14-Pin SMD Connector (PP Variant: 6-Pin SMD)
SIM Interface
Embedded eSIM
Internal Battery Charger
PP
In-built Battery
PP
Constellations Supported
GPS / BDS / Galileo
GNSS Antenna
No (External/Base Configuration)
Tracking Architecture
Reliable Fleet Telematics Architecture
Communication Interface
CAN FD
Digital Input (DI)
2
Digital Output (DO)
2
Analogue Input (AI)
2
On-Board Memory
1 Gbit Base (Upgradeable to 4 Gbit)
Cellular Module
LTE Cat1
Network / Cloud Protocol
TCP / MQTT
Encryption Standard
TLS 1.2
Hardware Security
External Hardware Security Module (HSM)
Firmware Management
OTA (HTTPS), CAN Options
Deployment Track
Field-Proven Reliability Framework
Empowering Every Standard
Engineered from the ground up to endure the rigorous thermal and structural stress typical of light electric vehicle architectures. Every certification and validation step is carried out through Accolade's in-house engineering and quality process.
Empowering Every Application
AT-TCU-3-A-100 is deployed across India's fast-growing electric 3-wheeler segment, from passenger movement to last-mile cargo.
Passenger E-Rickshaws
Shared and app-based passenger 3W platforms operating dense urban routes. ATM100 provides continuous location tracking and OTA-managed firmware, keeping large deployed fleets current without vehicle downtime.
Cargo & Last-Mile E-3W
Cargo electric 3-wheelers navigating fast-paced e-commerce routes within dense cities. The ATM100 monitors exact vehicle location, driving metrics, and payload security while feeding real-time operations dashboards via resilient LTE Cat1 networks.
Resources
Empowering Every Outcome Results That Speak For Themselves
February 4, 2026
Advancements in Zonal Architecture
Understanding the shift from domain-based to zonal control for weight and cost reduction.
Empowering Every Possibility
Explore related Accolade products designed to support wider connected mobility, vehicle electronics, power management, and intelligent automotive architectures.
Lakshya (ATL-1000)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.
Tarang (ACON-4T-PRO)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.
Atlas 4G (ATA-PRO)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras a magna non massa laoreet molestie eu in magna.
AT-RF-5-S-100
Complete AIS 140 compliant RFID identification system engineered for secure vehicle authentication, fuel management, and intelligent fleet operations. Built through full in-house reader and tag manufacturing, backed by dedicated customer support.
Empowering Secure Identification
Turning vehicles into authenticated data nodes, the AE-RFID Reader Series secures fueling, automates logging, and integrates vehicle identification directly into fleet and OEM networks.
AIS-140 & IS 16722 Compliance
Ensures complete AIS-140 and IS 16722:2018 compliance for Indian fleets, delivering government-mandated event logging and standardised vehicle identification
Secure Vehicle & Fuel Authentication
Prevents unauthorized fuel siphoning using EPC Gen2 / ISO 18000-6C RFID. Features a 250–300 mm read range (3 dBi, 865–868 MHz) and tamper-proof passive tags with 10-year retention (96-bit EPC, 512-bit memory).
IP68 Automotive-Grade Durability
Built for severe thermal and environmental stress using an IP67-rated PA6 GF30 housing with IP68 automotive durability. Operates reliably from −20°C to +70°C (Reader) and −40°C to +85°C (Tag).
High-Speed Bus Integration
Connects directly to Body & Power, SDV, ADAS, and Cockpit platforms via CAN-FD and RS232 (9V–32V operating range) to deliver zero-latency identification data across modern vehicle architectures.
Advanced Telematics Network
Feeds real-time authentication data into connected vehicle platforms via 5G, 4G Fallback, and Wi-Fi 6. Compact 120 × 80 × 25 mm form factor with IP67 and AIS-140 compliance.
Every Technical Detail
865–868 MHz Frequency
EPC Gen2 / ISO 18000-6C protocol
250–300 mm Reading Distance
Integrated 3 dBi antenna
CAN-FD & RS232 Interfaces
Designed for seamless vehicle integration
9V to 32V Operating Voltage
Compatible across automotive systems
IP67 & Automotive Grade PA6 GF30
Durable housing material
Passive, Tamper Proof RFID Tag
840–868 MHz · 10 years data retention · 96-bit EPC / 512-bit User memory
Empowering Every Specification
Frequency
865–868 MHz
Protocol
EPC Gen2 / ISO 18000-6C
Reading Distance
250–300 mm
Antenna
Integrated 3 dBi
Interfaces
CAN-FD, RS232
Operating Voltage
9V to 32V
Operating Temperature
−20°C to +70°C
Protection
IP67
Material
Automotive Grade PA6 GF30
Compliance
AIS-140 IS 16722:2018 with Latest Amendments
Frequency
840–868 MHz
Protocol
EPC Gen2 / ISO 18000-6C
Memory
96-bit EPC, 512-bit User
Data Retention
10 years
Operating Temperature
−40°C to +85°C
Design
Passive, Tamper Proof
Compliance
IS 16722 with Latest Amendments
Operating Voltage
9V – 32V
Connectivity
5G / 4G Fallback / Wi-Fi 6
Standards
AIS-140 / IP67
Dimensions
120mm x 80mm x 25mm
Empowering Every Standard
Validated through Accolade Electronics' in-house engineering and R&D processes in Pune, the AE-RFID series delivers certified compliance and industrial-grade reliability for demanding mobility deployments.
AIS-140 Compliance: IS 16722:2018 certified, including the latest amendments
Ruggedized Ingress Rating: IP67 and IP68 automotive-grade protection
In-House Validation: Reader and Tag solutions built and backed under one roof
Empowering Every Application
The AT-RF-5-S-100 provides the authentication and connectivity layer across core automotive and fleet deployments.
Intelligent Fleet Operations & Fuel Management
Deployed to enable secure, compliant vehicle authentication specifically optimised for intelligent fleet operations and automated fuel management applications.
Electronics & Software Defined Vehicles
Integrates directly into modern vehicle platforms, interfacing seamlessly with Body & Power networks, ADAS modules, Cockpit electronics, and software systems.
